一.简介

GPUImage 共 125 个滤镜, 分为四类

1、Color adjustments : 31 filters , 颜色处理相关
2、Image processing : 40 filters , 图像处理相关.
3、Blending modes : 29 filters , 混合模式相关.
4、Visual effects : 25 filters , 视觉效果相关.

GPUImageSharpenFilter 属于 GPUImage 图像处理相关,用来处理图像锐化效果,shader 源码如下:

/******************************************************************************************/
//@Author:猿说编程
//@Blog(个人博客地址): www.codersrc.com
//@File:IOS – OpenGL ES 设置图像锐化 GPUImageSharpenFilter
//@Time:2022/04/17 07:30
//@Motto:不积跬步无以至千里,不积小流无以成江海,程序人生的精彩需要坚持不懈地积累!
/******************************************************************************************/


NSString *const kGPUImageSharpenVertexShaderString = SHADER_STRING
(
 attribute vec4 position;
 attribute vec4 inputTextureCoordinate;

 uniform float imageWidthFactor;
 uniform float imageHeightFactor;
 uniform float sharpness;

 varying vec2 textureCoordinate;
 varying vec2 leftTextureCoordinate;
 varying vec2 rightTextureCoordinate;
 varying vec2 topTextureCoordinate;
 varying vec2 bottomTextureCoordinate;

 varying float centerMultiplier;
 varying float edgeMultiplier;

 void main()
 {
     gl_Position = position;

     vec2 widthStep = vec2(imageWidthFactor, 0.0);
     vec2 heightStep = vec2(0.0, imageHeightFactor);

     textureCoordinate = inputTextureCoordinate.xy;
     leftTextureCoordinate = inputTextureCoordinate.xy - widthStep;
     rightTextureCoordinate = inputTextureCoordinate.xy + widthStep;
     topTextureCoordinate = inputTextureCoordinate.xy + heightStep;
     bottomTextureCoordinate = inputTextureCoordinate.xy - heightStep;

     centerMultiplier = 1.0 + 4.0 * sharpness;
     edgeMultiplier = sharpness;
 }
);


#if TARGET_IPHONE_SIMULATOR || TARGET_OS_IPHONE
NSString *const kGPUImageSharpenFragmentShaderString = SHADER_STRING
(
 precision highp float;

 varying highp vec2 textureCoordinate;
 varying highp vec2 leftTextureCoordinate;
 varying highp vec2 rightTextureCoordinate;
 varying highp vec2 topTextureCoordinate;
 varying highp vec2 bottomTextureCoordinate;

 varying highp float centerMultiplier;
 varying highp float edgeMultiplier;

 uniform sampler2D inputImageTexture;

 void main()
 {
     mediump vec3 textureColor = texture2D(inputImageTexture, textureCoordinate).rgb;
     mediump vec3 leftTextureColor = texture2D(inputImageTexture, leftTextureCoordinate).rgb;
     mediump vec3 rightTextureColor = texture2D(inputImageTexture, rightTextureCoordinate).rgb;
     mediump vec3 topTextureColor = texture2D(inputImageTexture, topTextureCoordinate).rgb;
     mediump vec3 bottomTextureColor = texture2D(inputImageTexture, bottomTextureCoordinate).rgb;

     gl_FragColor = vec4((textureColor * centerMultiplier - (leftTextureColor * edgeMultiplier + rightTextureColor * edgeMultiplier + topTextureColor * edgeMultiplier + bottomTextureColor * edgeMultiplier)), texture2D(inputImageTexture, bottomTextureCoordinate).w);
 }
);
#else
NSString *const kGPUImageSharpenFragmentShaderString = SHADER_STRING
(
 varying vec2 textureCoordinate;
 varying vec2 leftTextureCoordinate;
 varying vec2 rightTextureCoordinate;
 varying vec2 topTextureCoordinate;
 varying vec2 bottomTextureCoordinate;

 varying float centerMultiplier;
 varying float edgeMultiplier;

 uniform sampler2D inputImageTexture;

 void main()
 {
     vec3 textureColor = texture2D(inputImageTexture, textureCoordinate).rgb;
     vec3 leftTextureColor = texture2D(inputImageTexture, leftTextureCoordinate).rgb;
     vec3 rightTextureColor = texture2D(inputImageTexture, rightTextureCoordinate).rgb;
     vec3 topTextureColor = texture2D(inputImageTexture, topTextureCoordinate).rgb;
     vec3 bottomTextureColor = texture2D(inputImageTexture, bottomTextureCoordinate).rgb;

     gl_FragColor = vec4((textureColor * centerMultiplier - (leftTextureColor * edgeMultiplier + rightTextureColor * edgeMultiplier + topTextureColor * edgeMultiplier + bottomTextureColor * edgeMultiplier)), texture2D(inputImageTexture, bottomTextureCoordinate).w);
 }
);
#endif

二.效果演示

使用GPUImageSharpenFilter 处理图片示例,原图:

IOS – OpenGL ES 设置图像锐化 GPUImageSharpenFilter

GPUImageSharpenFilter 效果图:

IOS – OpenGL ES 设置图像锐化 GPUImageSharpenFilter

三.源码下载

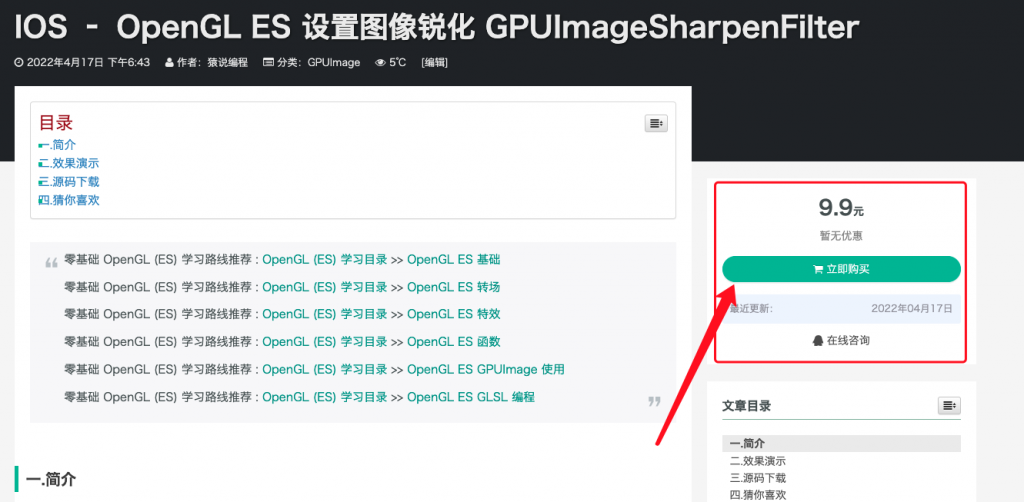

OpenGL ES Demo 下载地址 : IOS – OpenGL ES 设置图像滤镜 GPUImageSharpenFilter

IOS – OpenGL ES 设置图像锐化 GPUImageSharpenFilter
